DuaLink MEA PRO

Specially designed to monitor the functional activity of 2 physiological compartments of cell populations, compatible with Maestro PRO or EDGE (Axion BioSystems).

Each chips are compartmentalized by microchanels technology.This enables co-culture of different cell types (keratinocytes & neurons, neurons & intestinal cells…). Microchhanels technology enables also innervation of the 3rd channel by neuron endings (innervated skin, innervated gut…). By adding the MEA option, record the electrical activity of neurons to decode data from any innervated organ.

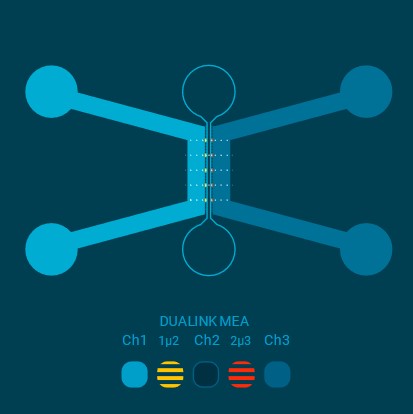

Up to 16 data points, DuaLink MEA is composed of 2 compartments for independant culture per chips​ and 1 compartment for fluidic isolation and cell type electrophysology activity isolation per compartment & remote stimulation. The µchannels technology are used to compartmentalize culture and connect channels.

TECHNICAL SPECIFICATION
1 2
  • Functional activity recording
  • 1 or 2 cell types electrophysiology activity isolation per compartment
  • Compatible with Maestro PRO, powered by Axion BioSystems
  • 4 QuarterBentos (16 data points)
  • 1 NeoBento MEA PRO
  • UpLink, utility software, downloadable from our support page
2.990,00€
2.990,00€
Sale Sold out
Shipping calculated at checkout.
View full details

Features.

  • High-Throughput Format.

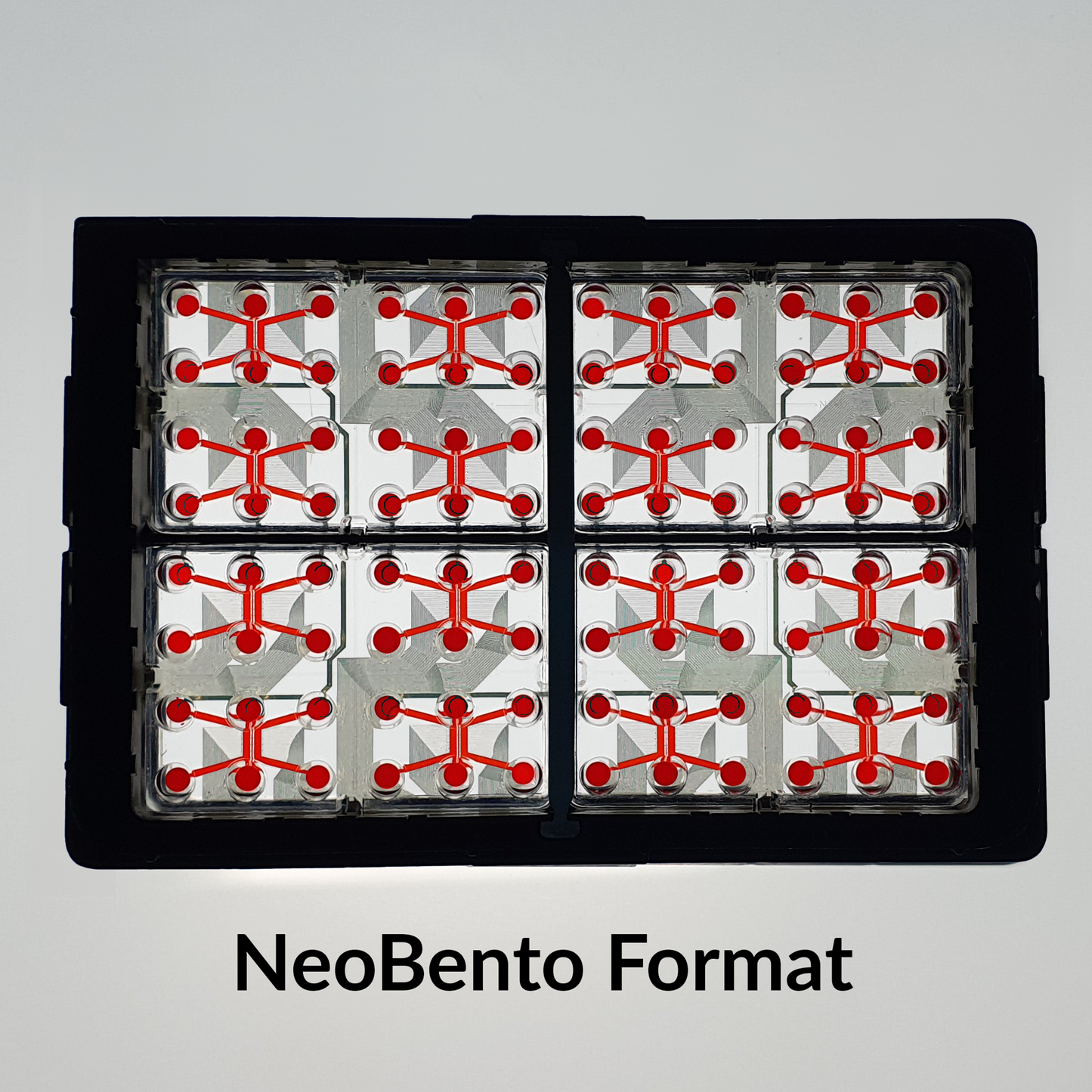

    NeoBento™, the standard format for NeuroPlatforms chips, available up to 4 QuarterBentos™ (up to 16 chips).

    • Standard ANSI format (96-well plate)
    • Pump-free & expensive equipment-free
    • Standard equipment (liquid handling & imaging) compatibility

  • Readouts Compatibility.

    In-depth reading of the data to better understand the study results and potential implications.

    • Electrophysiological recording (MEA)
    • Imaging (Immunofluorescence, Calcium Imaging…)​
    • Biochimic analysis (ELISA, Lysis cells analysis, Liquid Chromatography…)​

  • Compartmentalization.

    Compartmentalized microfluidics devices to co-culture 2 different cell types.

    • Each compartment has its own media & coating solutions
    • Discrimination of mode and mechanism of action
    • Pathophysiological applications

  • Innervation Of Any Organ.

    Microchannels technology allow only the passage of neuron endings leaving cell bodies in compartment. .

    • Innervated PNS & CNS
    • Neuromuscular junction
    • Innervated Skin
